Drawings are our
discipline. Automation
is our product.

CADDEZ builds automation for the drawing workflows engineering teams depend on — and provides the drafting capacity to run them. SolarCAD is that experience applied end to end to utility-scale solar.

Explore SolarCAD → Drafting services
Discipline
CAD & PV design
Services
Automation, drafting
Product
SolarCAD
Established
2022
#CAD 01 What we do

Two things, done properly.

We are not a general software house. Everything CADDEZ builds comes out of time spent inside real drawing offices, on real revision cycles.

Software

CAD automation

Tools that remove the repetitive parts of drafting — the setting out, the counting, the schedule that has to be rebuilt every time something upstream changes. Fewer manual steps means fewer places for an error to enter the drawing.

Services

PEB drafting & detailing

AutoCAD-based shop and erection drawings for steel fabricators, PEB manufacturers and EPC teams. We work as an extended drawing office, absorbing workload peaks against your standards, your detailing manual and your revision process.

#CAD 02 Product · SolarCAD

SolarCAD

Utility-scale solar layout, electrical design and BOQ — in the browser. From a DXF boundary to a construction-ready layout, cable schedule and bill of quantities. Nothing to install, and no CAD seat to maintain alongside it.

Same site, two MV topologies Radial Looped RMU Change
MV feeder panels196−13
MV cable22.1 km11.4 km−10.8 km
MV loss631.5 kW412.3 kW−219 kW

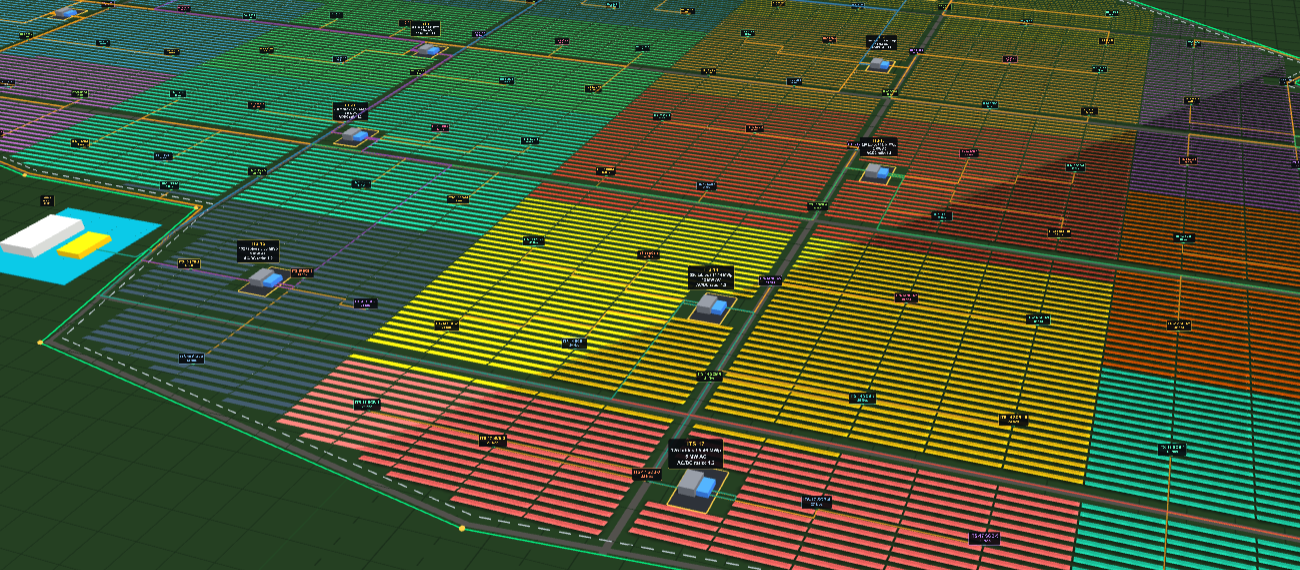

SolarCAD three-dimensional view of a 211 MWp solar farm layout, with tables colour-coded by inverter station and roads and cable trenches resolved against the site boundary.
211.76 MWp DC · 131.66 ha · 4,870 tables across 19 inverter stations. The same site designed radially and as a looped ring — about twenty minutes for both runs.
See how SolarCAD works →
#CAD 03 How we work

Built by people who have to live with the drawing.

A drawing is not finished when it looks right. It is finished when the fabricator can build from it, the reviewer can check it, and the next revision does not mean starting again.

  • Output in standard formats you already use — DXF in, DXF out, no proprietary lock-in
  • Quantities generated from what was actually drawn, not estimated from parameters
  • Every calculated figure traceable back to the geometry it came from
  • Client standards, detailing manuals and revision workflows followed as given

Get in touch

Tell us what you are drawing.

Whether it is drafting capacity, an automation problem, or a solar site you would like to see laid out — write to us and we will come back with something specific rather than a brochure.
